$1,289.90
‘

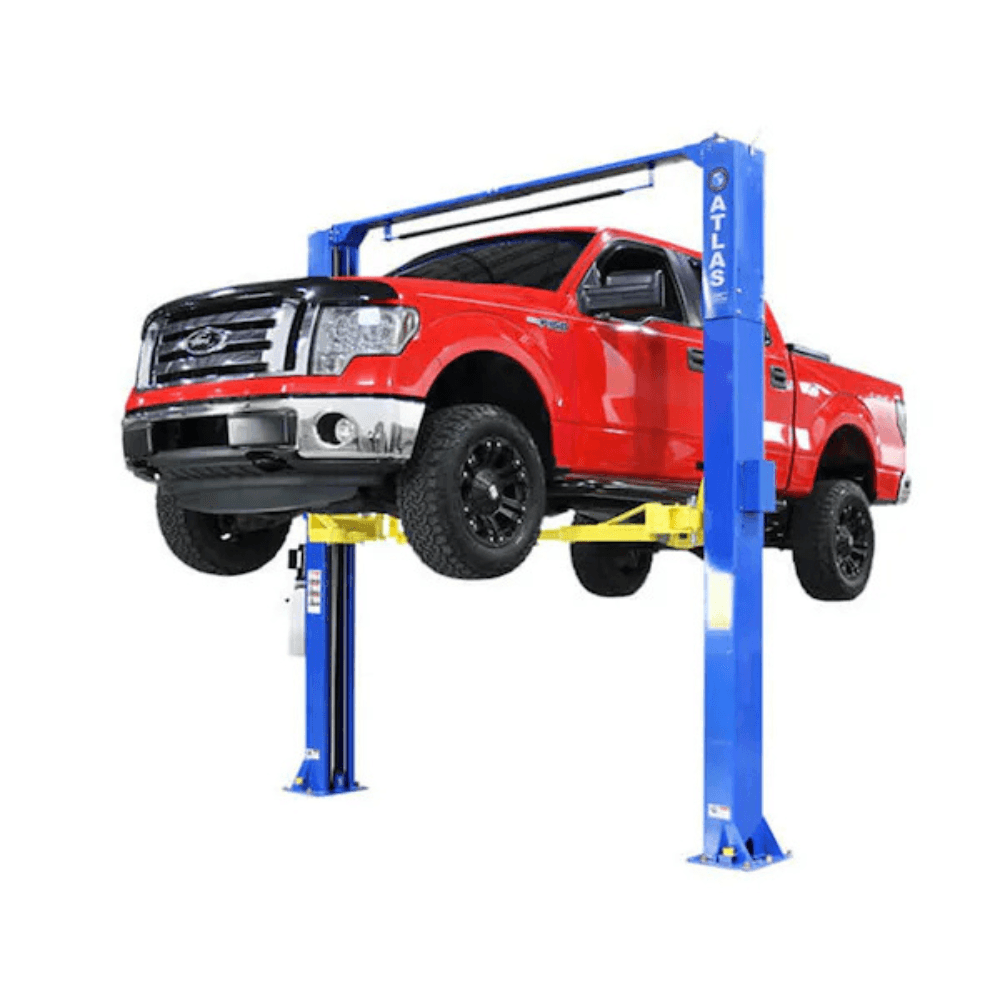

Atlas 9KOHX Overhead Clear-Floor 2-Post Lift
The Atlas 9KOHX is a light-duty, economy-designed overhead two-post lift, offering reliable performance at an affordable price. Featuring a clear-floor design, it allows unrestricted movement beneath the vehicle, making it a great option for homeowners and small commercial shops.
With a 9,000 lb. lifting capacity, this lift is perfect for servicing cars, SUVs, and light-duty trucks. It offers two adjustable height settings (11’ 6” or 11’ 10”), ensuring compatibility with standard garages.
The symmetric/asymmetric arm design provides maximum versatility, allowing operators to position the lift arms to accommodate different vehicle sizes. Additionally, the spring-loaded Secondary Lock System (SLS) automatically engages in case of a slack or broken chain, adding an extra layer of safety.
Key Features & Benefits
9,000 lb. Capacity – Ideal for lifting cars, SUVs, and light-duty trucks.
Padded Shut-Off Bar – Prevents damage by stopping the lift if a vehicle contacts the top.
Light Commercial Grade – Suitable for home garages and small shops.

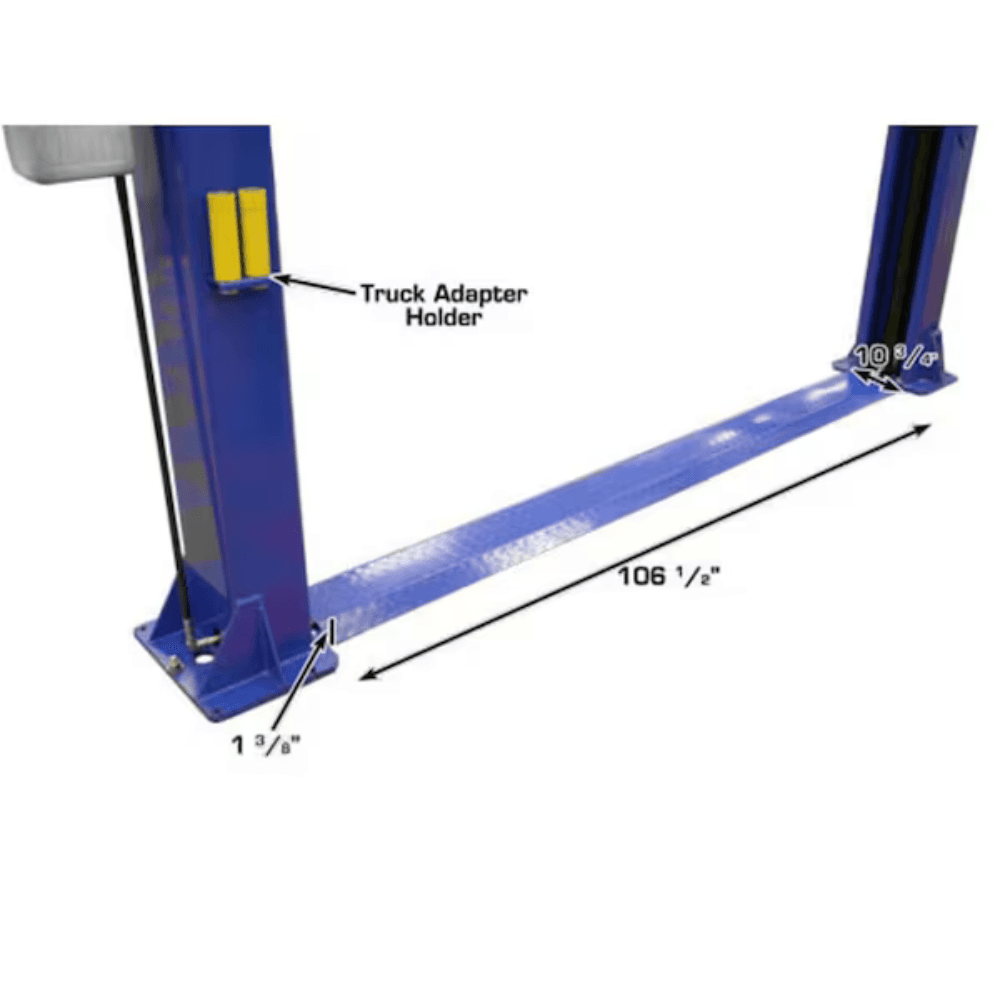

Clear-Floor Design – Provides unobstructed workspace under the vehicle.
Asymmetric/Symmetric Arm Design – Adapts to various vehicle sizes for increased flexibility.
Dual Hydraulic Chain-Drive Cylinders – Ensures smooth and reliable lifting.
Powder Coat Finish – Enhances durability and corrosion resistance.
Secondary Lock System (SLS) – Engages automatically in case of chain failure.

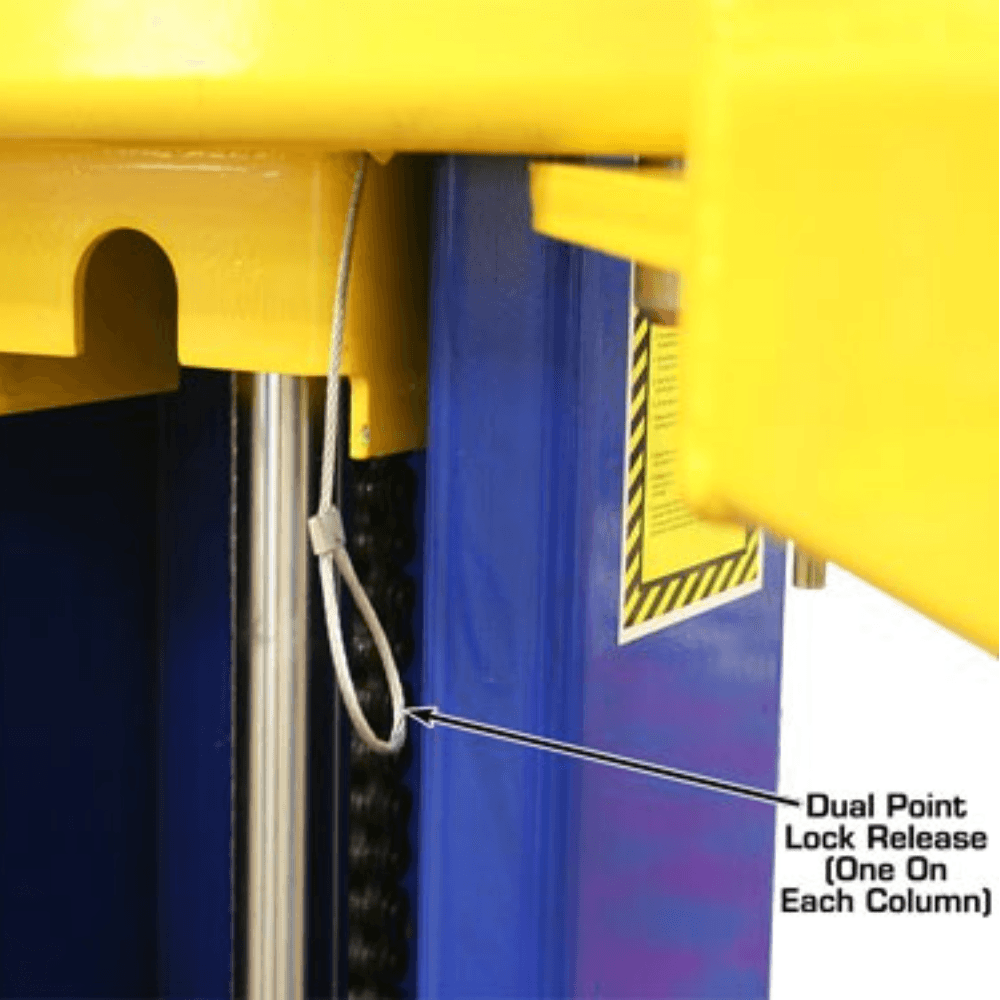

Dual Point Lock Release – Ensures easy lowering and improved safety.
Automatic Arm Restraints – Keeps arms securely locked in place during lifting.
Free 8-Piece Truck Adapter Set – Expands compatibility with larger vehicles.
Mounting Hardware Included – Ensures a hassle-free installation.
Shipping Weight: 1,450 lbs. – Lightweight yet durable for reliable performance.
Technical Specifications
Specification
Measurement / Detail
Lifting Capacity
9,000 lbs.
Overall Height
138″ (11′ 6″) or 142″ (11′ 10″)
Overall Floor Width
134 1/2″ (11′ 2 1/2″)
Outside Column to Outside Column Width
124 7/8″ (10′ 4 7/8″)
Maximum Lift Height (Without Adapters)
74 1/2″
Maximum Lift Height (With Adapters)
81″
Minimum Arm Height
4″
Inside Column Width
110″ (9′ 2″)
Drive-Thru Clearance
100″ (8′ 4″) Symmetric / 90 1/2″ (7′ 6 1/2″) Asymmetric
Column Size
7 1/4″ x 11″
Column Steel Thickness
5mm
Baseplate Dimensions
14 1/4″ x 18″

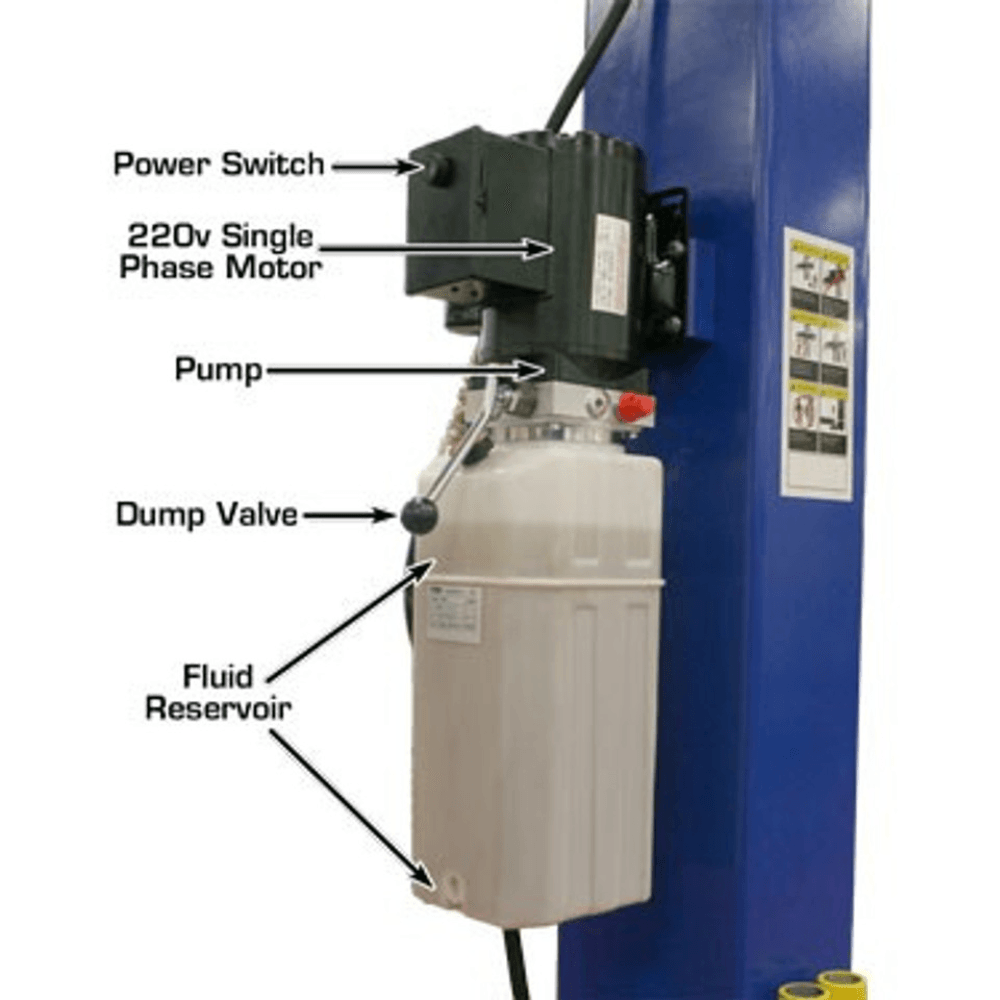

Motor/Electrical Requirement
220V, Single Phase (30 Amp Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Shipping Weight
1,450 lbs.

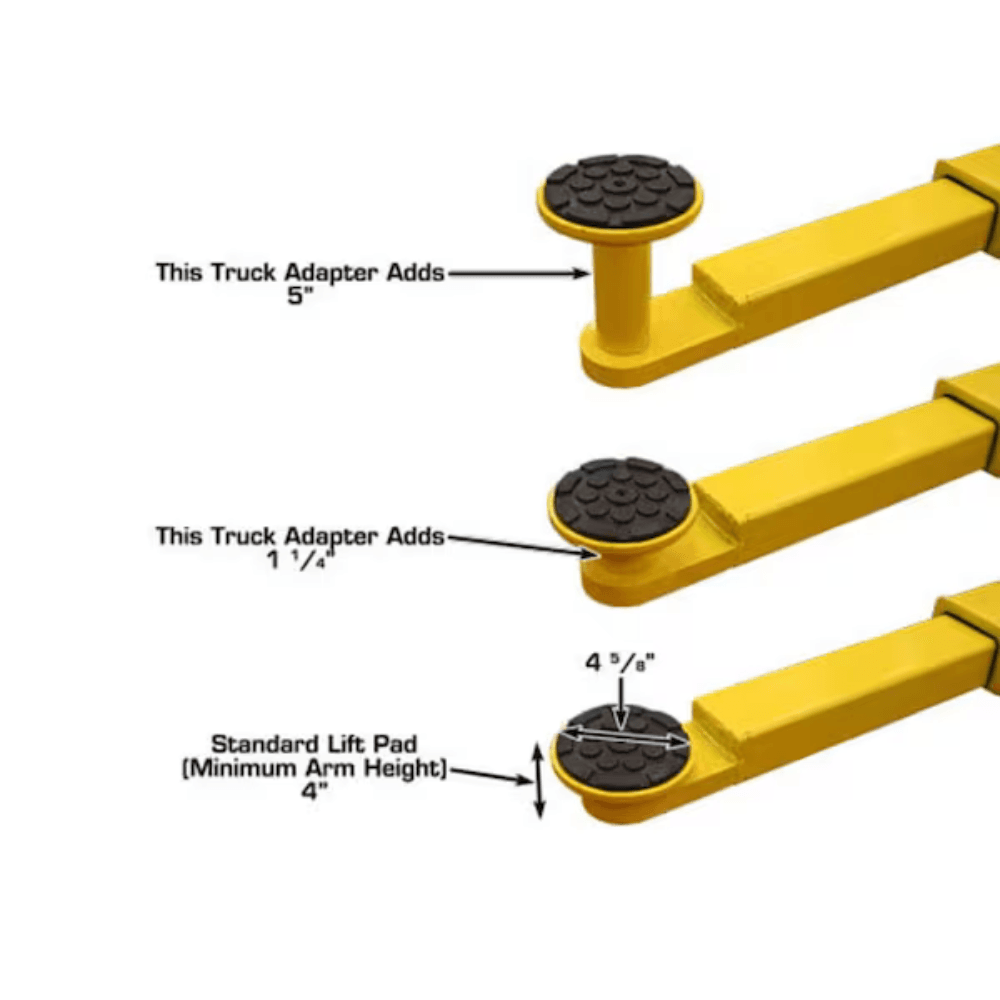

Adapter Heights
4 at 1.5″, 4 at 5″
Arm Hole/Adapter Peg Size
1.5″
Final Thoughts
The Atlas 9KOHX is a reliable and affordable two-post lift, offering exceptional performance for light commercial and home garage use. With versatile lifting configurations, a clear-floor design, and a dual safety system, it is the perfect solution for car enthusiasts and small auto shops looking for professional-grade lifting at an economical price.
