$1,329.95
‘

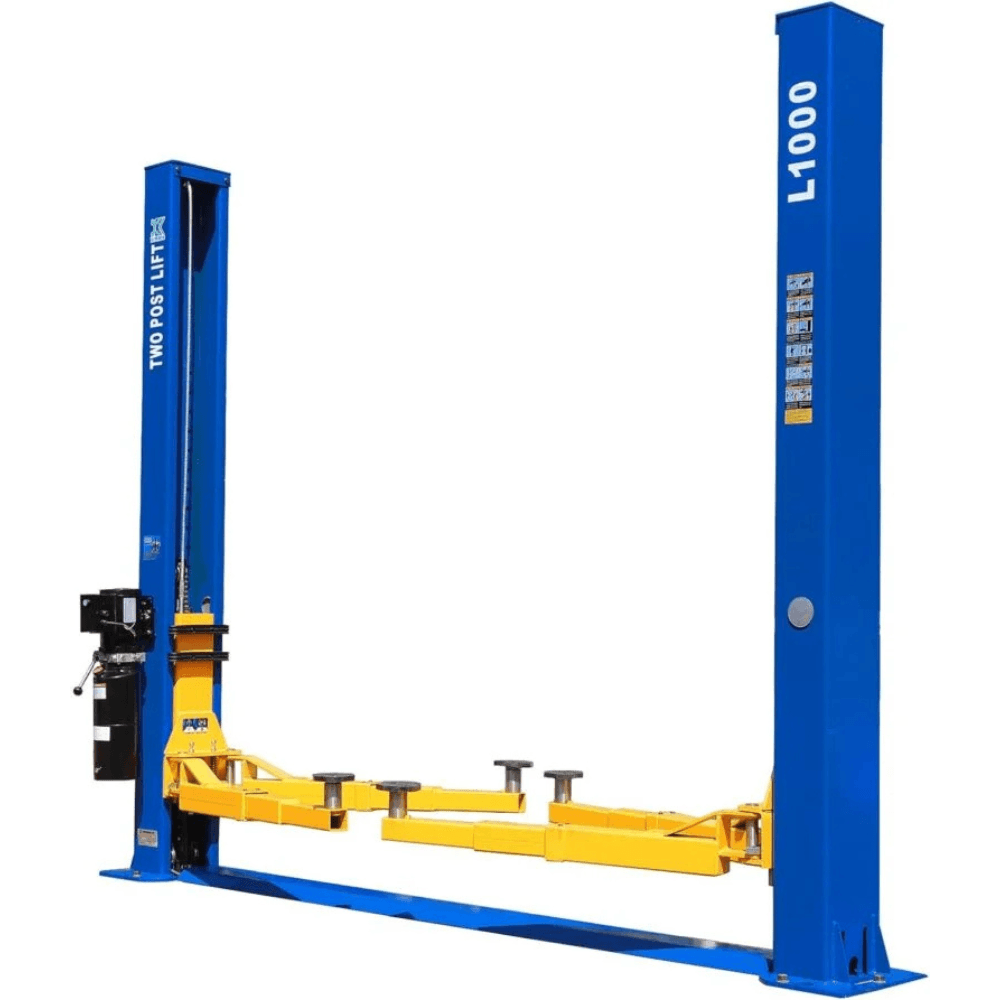

XKUSA L1000 Two-Post Car Lift – 10,000 lb. Capacity
The XKUSA L1000 is a heavy-duty, high-capacity two-post lift, designed for automotive service shops, repair centers, and DIY enthusiasts. With a 10,000 lb. lifting capacity, this lift accommodates a wide range of vehicles, from passenger cars to light trucks and SUVs.
Featuring a durable steel construction, double-point safety lock release, automatic arm restraints, and hydraulic lifting operation, this lift is built for efficiency, reliability, and long-lasting performance. Its open-top design provides unobstructed access to the vehicle’s undercarriage, making maintenance and repairs easier and more convenient.
Key Features & Benefits
10,000 lb. Lifting Capacity – Suitable for cars, trucks, and SUVs.
Two-Post Open-Top Design – Provides full access to the undercarriage for maintenance and repairs.
Hydraulic Lifting System – Ensures smooth and controlled lifting.

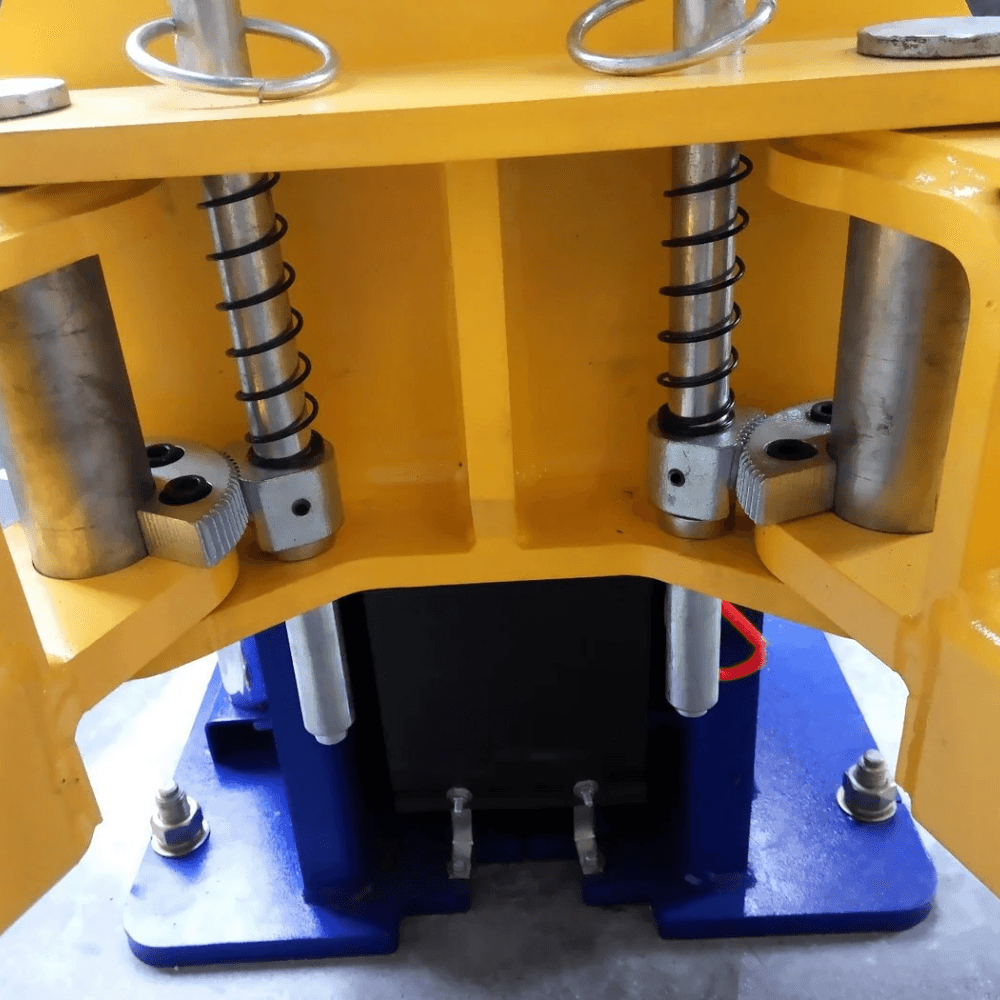

Double-Point Safety Lock Release – Enhances stability and security during operation.

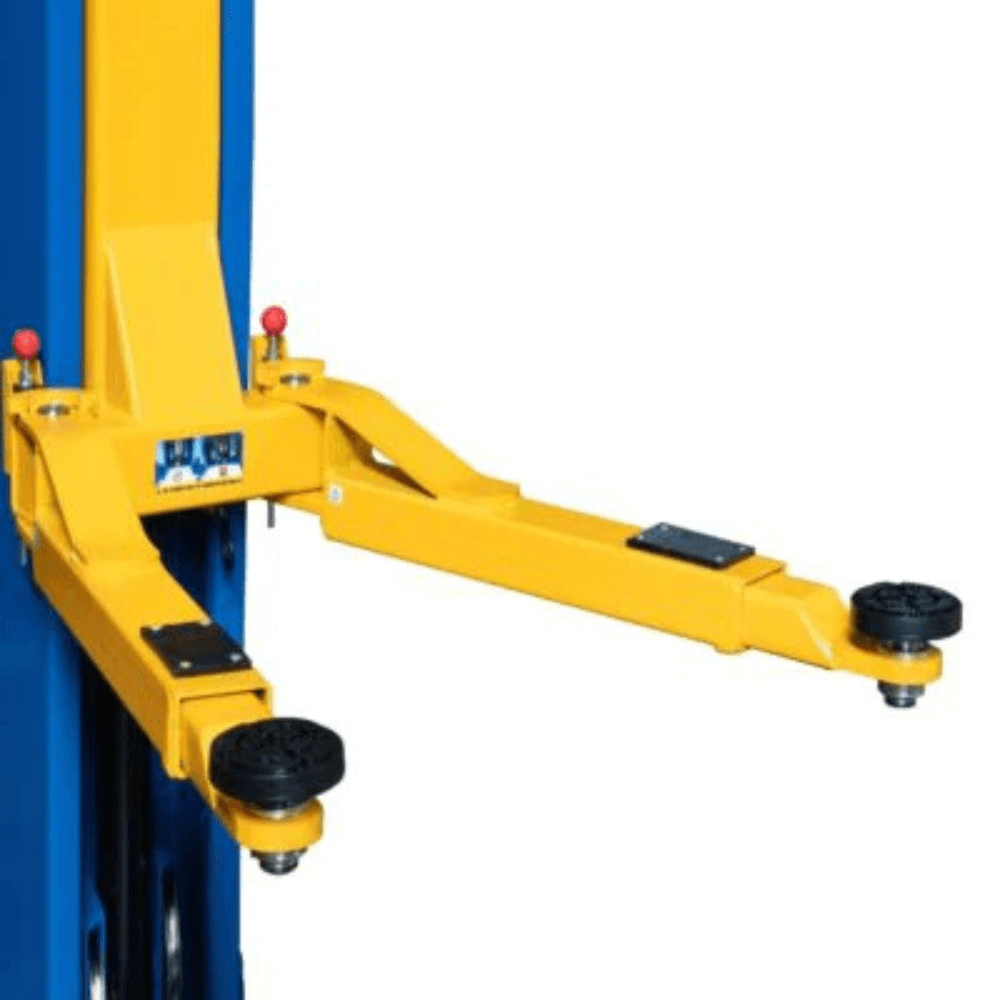

Automatic Arm Lock Restraints – Keeps lift arms securely positioned.
Relief Valve Built Into Power Pump – Prevents overloading for increased safety.
Door Guard Protection Rubber – Protects vehicle doors from scratches and dents.
Heavy-Duty Steel Construction – 5/16″ diameter cable and 4.56″ pulley reduce stress on synchronization and extend cable life. Stiffened 5/8″ thick base plate adds stability.
Ultra High Molecular Self-Lubricating Nylon Slider – Ensures smooth movement of the carriage.
Anchor Bolts & Mounting Hardware Included – For secure installation.
Easy Control System – Lifting operation via “UP” button. Manual lowering via lever control.
Truck Adapter Set Included – Expands vehicle compatibility.
Technical Specifications
Specification
Measurement / Detail
Lifting Capacity
10,000 lbs.
Overall Height
110-1/4″
Overall Width
134-21/32″
Column Width
10.62″
Base Width
18.89″
Column Steel Thickness
3/16″
Carriage Steel Thickness
15/64″
Arm Steel Thickness
15/64″
Front Arm Reach
30.7″ to 48″
Rear Arm Reach
30.7″ to 48″
Minimum Pad Height
3-7/8″
Maximum Lift Height
78-7/8″
Drive-Thru Width Clearance
99-19/32″
Time to Full Rise
20-60 sec
Shipping Weight
1,350 lbs.
Voltage Requirement
220V or 110V
Material
Heavy-Duty Steel
Warranty
Yes
Why Choose the XKUSA L1000 Two-Post Lift?
The XKUSA L1000 is a versatile and heavy-duty two-post car lift, ideal for professional mechanics, auto repair shops, and at-home automotive enthusiasts. Its high lifting capacity, durable steel construction, and advanced safety features ensure reliable performance and maximum efficiency.
For a dependable, user-friendly, and high-performance two-post lift, the XKUSA L1000 is the perfect choice!
