$1,329.95
The ultimate two-post lift for performance garages and professional auto shops.

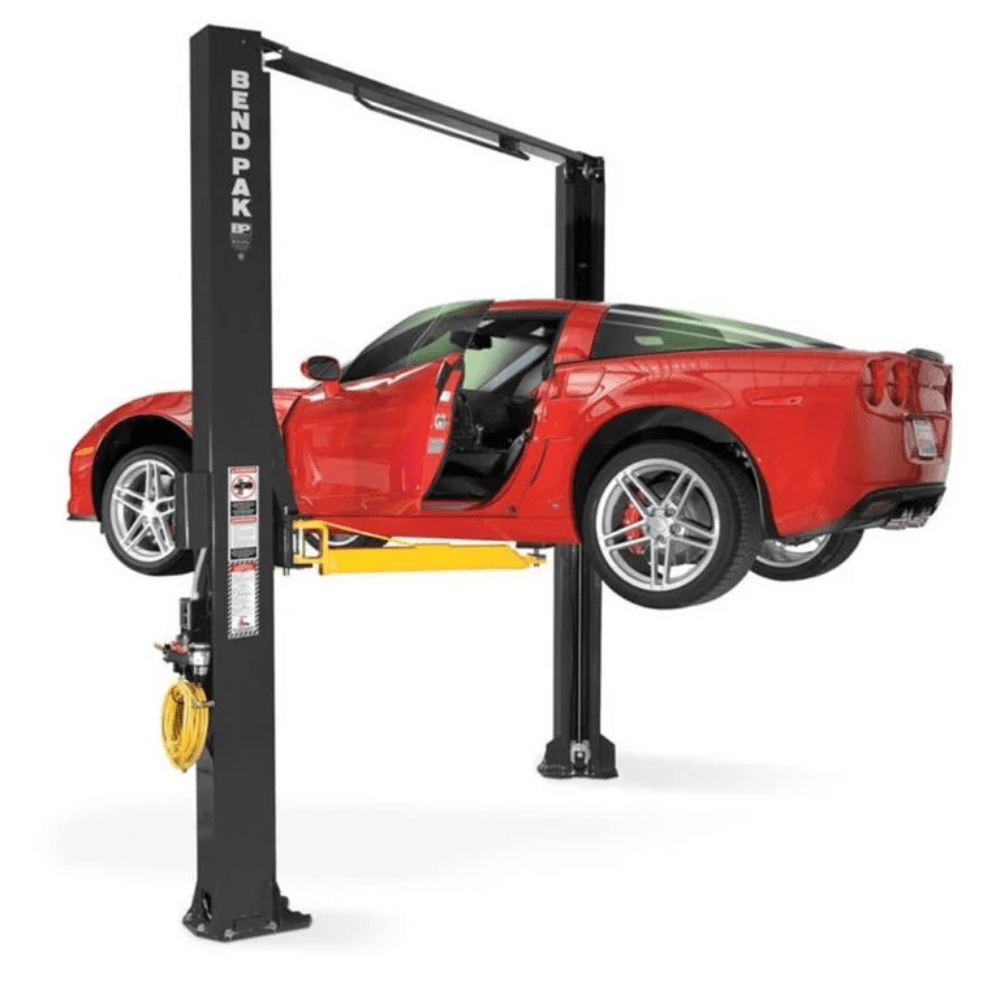

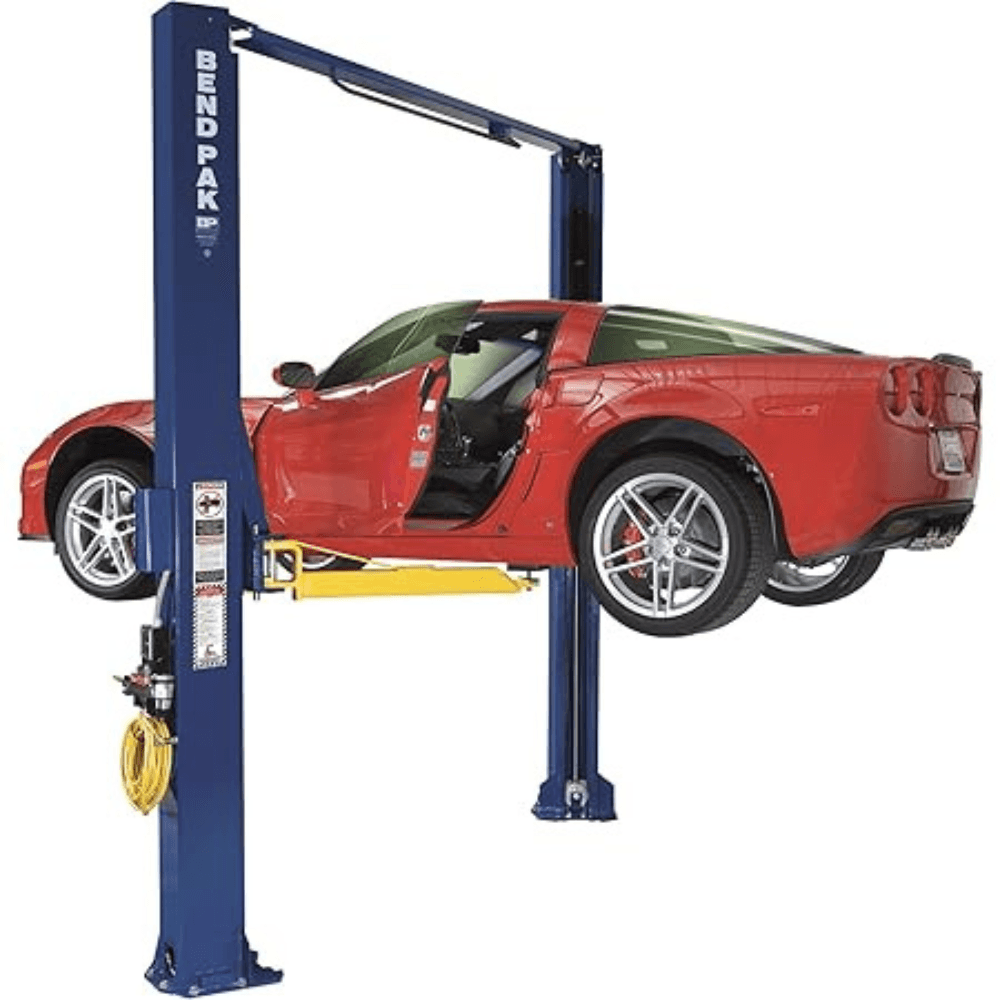

The BendPak XPR-10AS-LP is a high-performance asymmetric two-post lift featuring exclusive Low-Pro™ arms designed specifically for lowered sports cars and vehicles with lift points at the extreme edges of the chassis. Engineered for professional garages and automotive service shops, this industrial-strength lift offers cutting-edge technology, superior materials, and a robust 10,000 lb. lifting capacity.
With expandable width configurations, dual hydraulic direct-drive cylinders, and a reinforced structure, the XPR-10AS-LP delivers maximum efficiency, safety, and reliability.
Key Features & Benefits
10,000 lb. Lifting Capacity – Handles cars, trucks, SUVs, and low-profile sports cars.

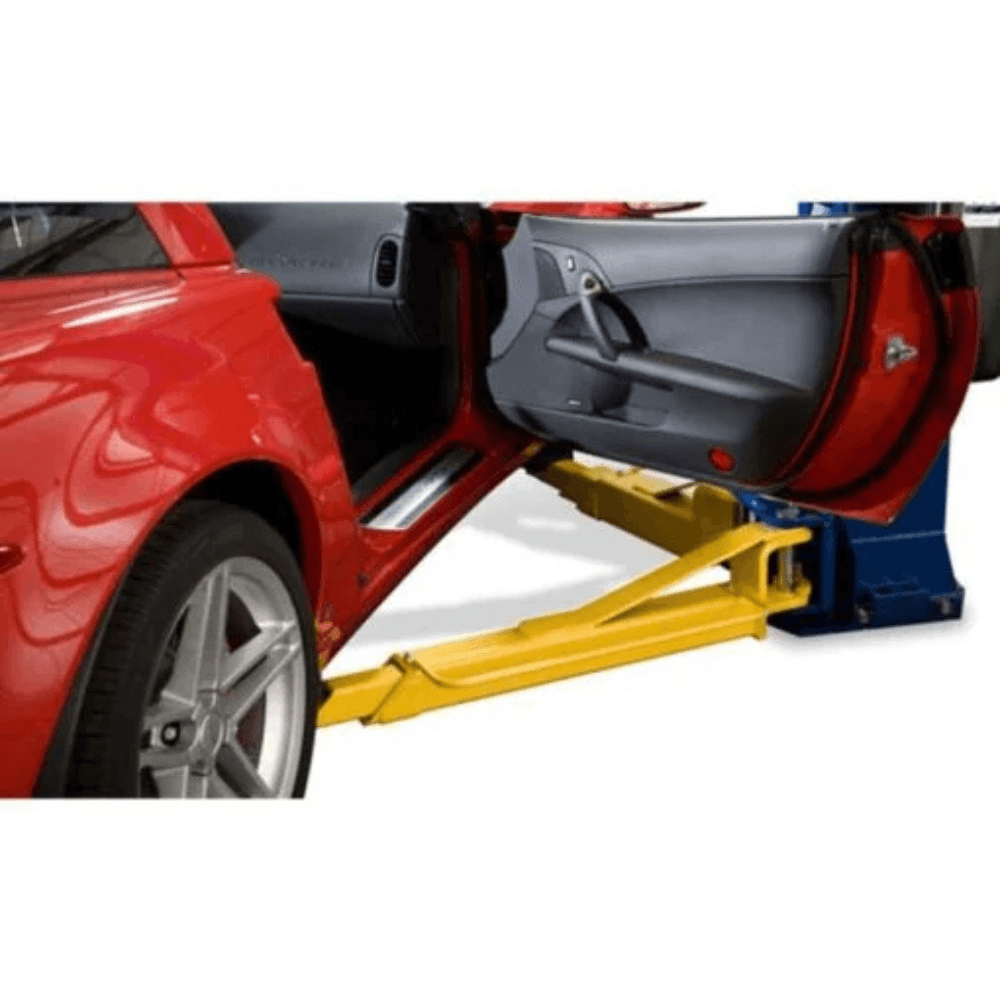

Low-Pro™ Arms – Ideal for lowered vehicles with lift points at the chassis edge.
Asymmetric Design – Allows easier vehicle entry/exit and better workspace ergonomics.
Expandable Top Beam – Adjustable for narrow or wide drive-thru configurations.
Double-Telescoping Screw Pads – Versatile and adaptable for various vehicles.
Padded Overhead Safety Shutoff Bar – Prevents over-lifting and damage.
Tru-Metric™ Arm Design – Flexible arm positioning for different vehicle sizes.
30° Rotated Single-Piece Columns – Improved lifting angles and column stability.
Single-Point Safety Release – Simplifies locking/unlocking process.
Dual Hydraulic Direct-Drive Cylinders – Smooth, powerful, and low-maintenance lifting.
Oversized 53″ Tall Carriage – Increases lift durability and strength.
Electric / Hydraulic Power System – Efficient, powerful, and easy to use.
17″ x 19″ A36 Steel Base Plates – Ensures maximum stability and safety.
Dura-Glide™ UHMW Polyethylene Bearings – Self-lubricating for smooth operation.
1/2″ Aircraft-Quality Equalizer Cables – Long-lasting, reliable, and safe.
Safety Locks Every 3″ – Multiple height settings ensure secure lifts.
Automatic Arm Restraints – Keeps arms locked in position for added security.
Versatile Drop-In Contact Pads & Stackable Adapters – Increases vehicle compatibility.

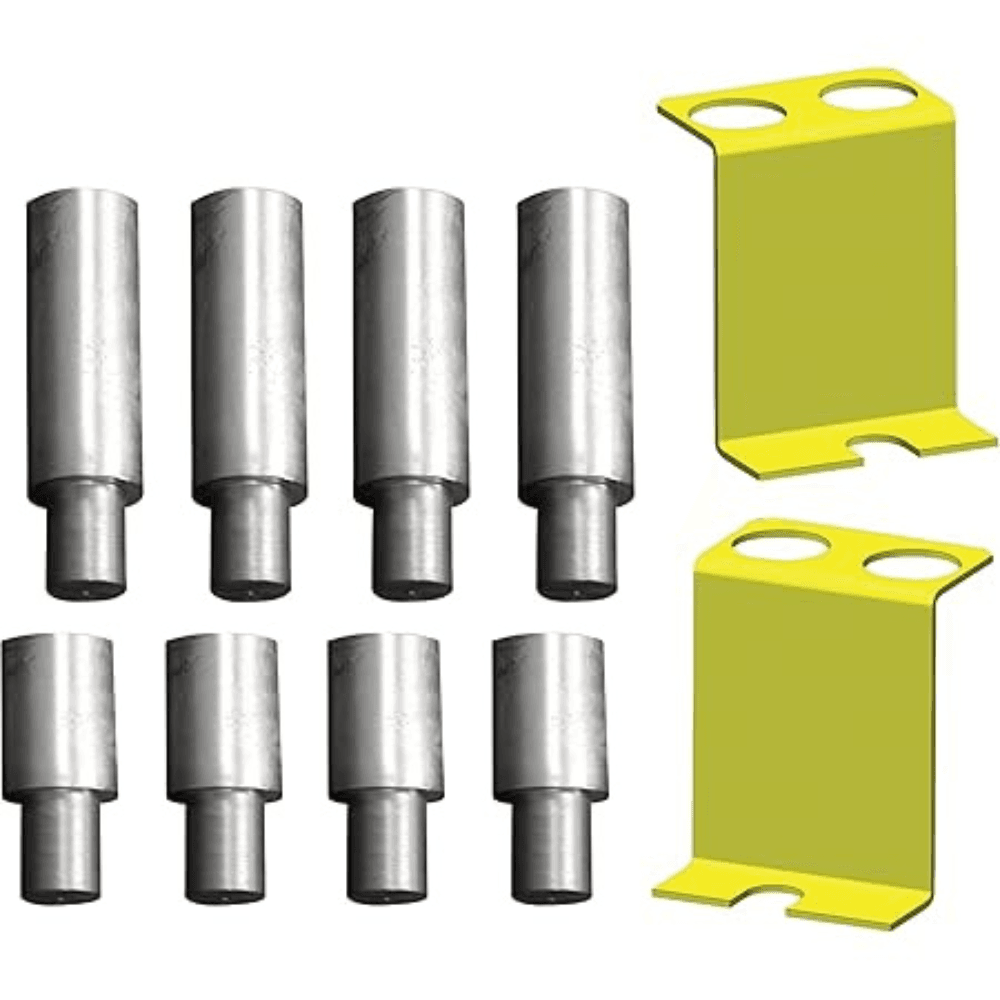

4-Piece 63mm Adapter Set Included – Expand lift range for various vehicles.
Meets/Exceeds ANSI/ALI ALCTV-2011 Standards – Top-tier safety compliance.
Technical Specifications
Specification
Measurement / Detail
Lifting Capacity
10,000 lbs. (4,536 kg)
Max Capacity (Front / Rear Axle)
5,000 lbs. (2,268 kg)
Height Overall
145″ (3,683 mm)
Width Overall (Narrow/Wide)
137″ / 145″ (3,480 / 3,683 mm)
Width Outside Columns (N/W)
133″ / 141″ (3,378 / 3,581 mm)
Inside Columns (N/W)
104″ / 112″ (2,642 / 2,845 mm)
Overhead Shutoff Height
141″ (3,581 mm)
Front Arm Reach
23.5″ – 38.5″ (597 – 978 mm)
Rear Arm Reach
34.5″ – 54.5″ (876 – 1,384 mm)
Minimum Pad Height
4.25″ – 6.75″ (108 – 171 mm)
Max Lift Height (Pad / +3″ Adapter)
73″ – 75″ / 75.5″ – 77.5″
Rise
69″ (1,753 mm)
Drive-Thru Clearance (N/W)
94″ / 102″ (2,388 / 2,591 mm)
Screw Pad Adjustment
2″ (51 mm)
Motor
220V AC / 60 Hz / Single Phase
Time to Full Rise
45 Seconds
Max Load Per Arm
2,500 lbs. (1,134 kg)
Why Choose the BendPak XPR-10AS-LP?
The BendPak XPR-10AS-LP is the ideal two-post lift for performance-focused garages and professional automotive shops. With advanced Low-Pro™ arms, an asymmetric design, and heavy-duty direct-drive technology, this lift offers outstanding performance, safety, and vehicle compatibility.
Upgrade your shop with the BendPak XPR-10AS-LP
